Icons for remote control and related current states: on/off, thermostat mode and ambient temperature. Customization: the user may select icons, which illustrate the actual remote appliances. |
|
Middle: icon for controlling a group. Right: icon for sending a customized instruction sequence ("macro"). |
-
Left: control appliances by groups (organize them by zones/floors). Centre: manage weekly switch clocks. |
|
Right: access to alarm management screen (activation by type, list of alarm receivers). |
-
Left icon: options and preferences. Centre: cancel any pending commands. |
|
Right icon: one-click update of all displayed information; all pending commands are first sent off. |
|

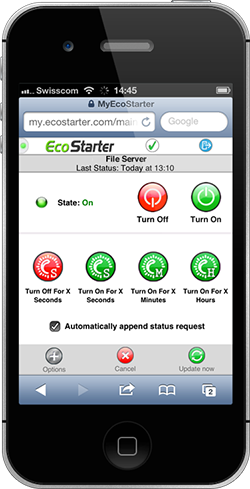

Control screen for a GSM Mini power socket. |

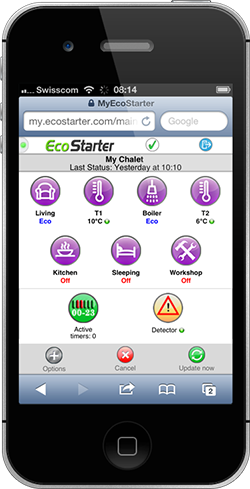

Main screen for a GSM Fixi module. |

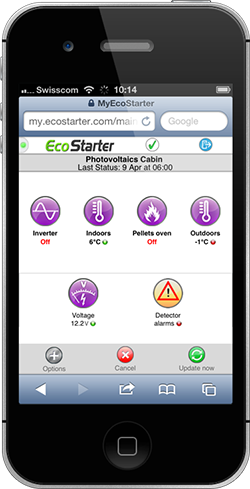

Main screen for a GSM 12A+ module. |

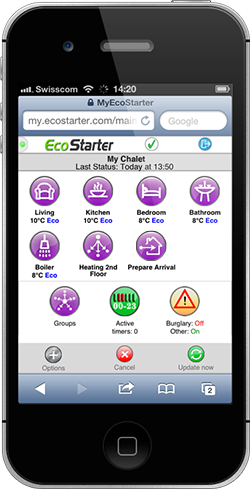

Main screen for an EcoStarter Touch or A-Comfort system. |
|
|
|
|

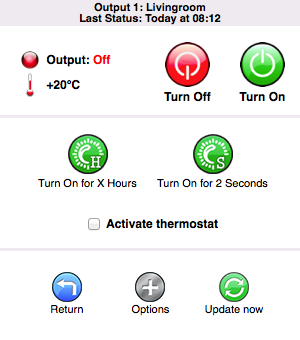

Controlling a socket/node/relay in manual mode (On/Off). |

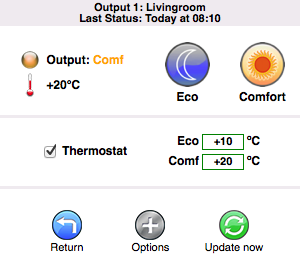

Controlling a socket/node/relay in thermostat mode (Eco/Comfort). |

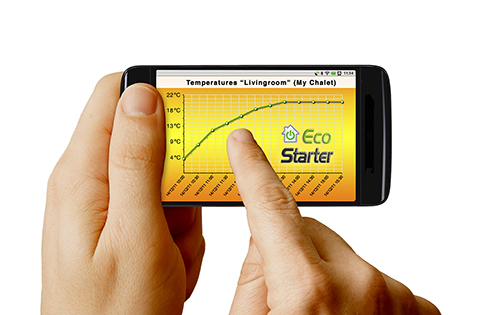

Display of voltage, moisture or temperature readings. |
Device list with respective status summaries. |
